MLC405G truck scale load cell, 5-50T, alloy steel/stainless steel, high precision, ideal for weighbridge.
Model: MLC405G
Category: Compression Load Cell
Range: 5t,10t,15t,20t,25t,30t,40t,50t

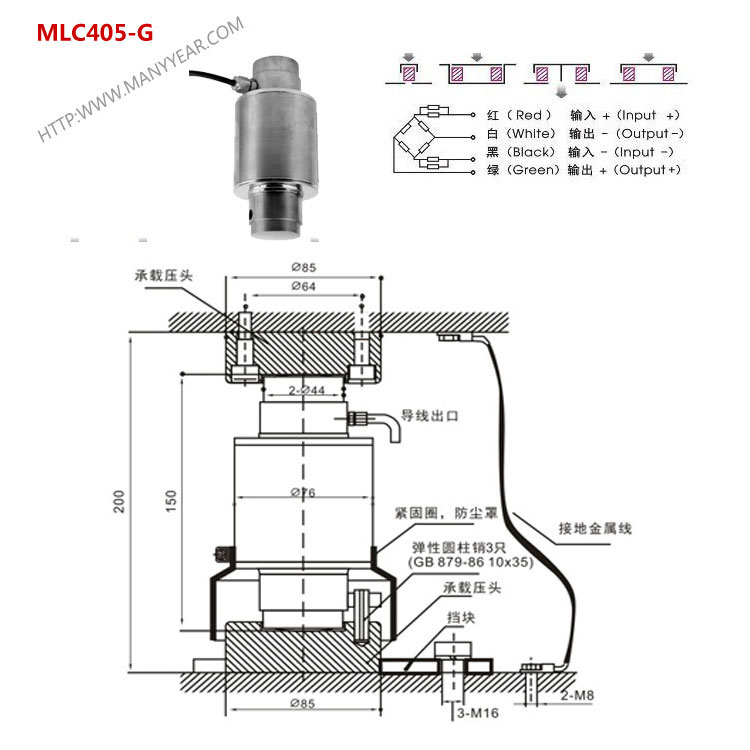

Dimension: 85*178.8mm
Material: alloy steel, stainless steel
Application: truck scale load cell, railway scale load cell, floor scale load cell, weighbridge load cell
| Technical specifications | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 350±5 & 700±5Ω |
| Rated output: | 2±0.003 mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.03%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.03%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+55ºC |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point: | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.02%FS/10ºC |
| Input resistance: | 350±5 & 700±10Ω | Protection level: | IP66&IP68 |
