Model: MLC403
Category: Compression Load Cell
Load range: 25t,30t,40t, 50t, 60t, 90t
Dimension: 72*192/85*225mm
Material: Alloy steel, stainless steel

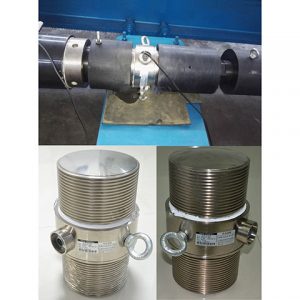

Application: Force test equipment, compression test equipment

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Product Parameters

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

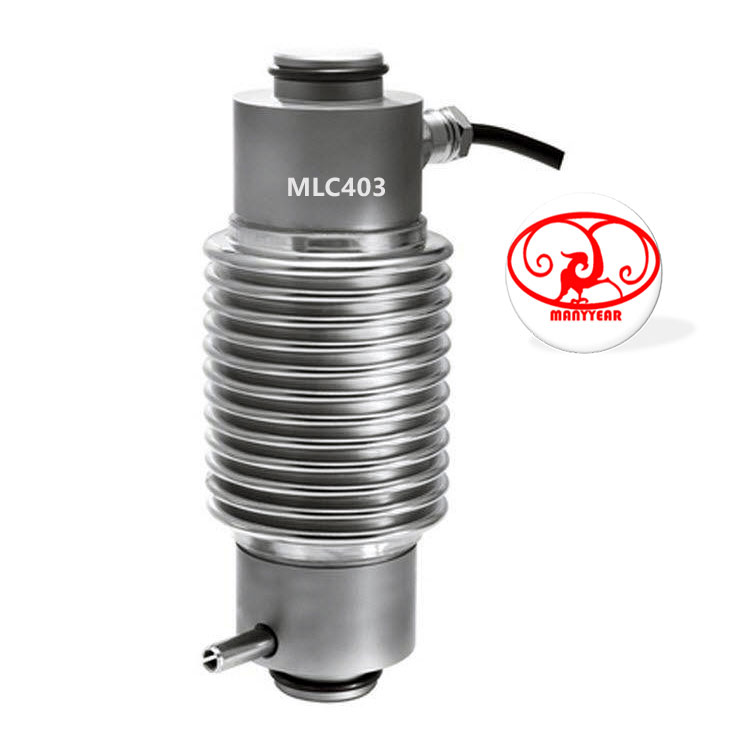

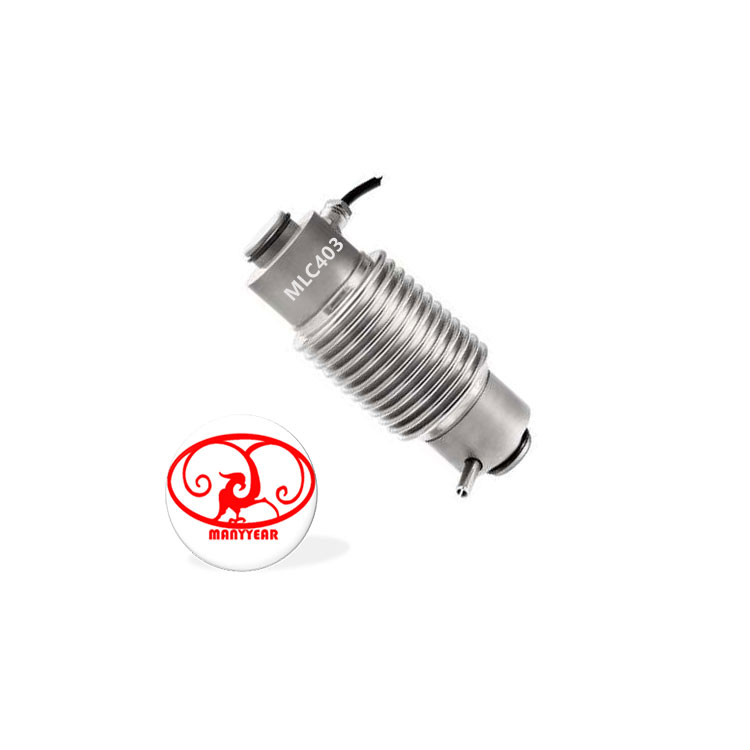

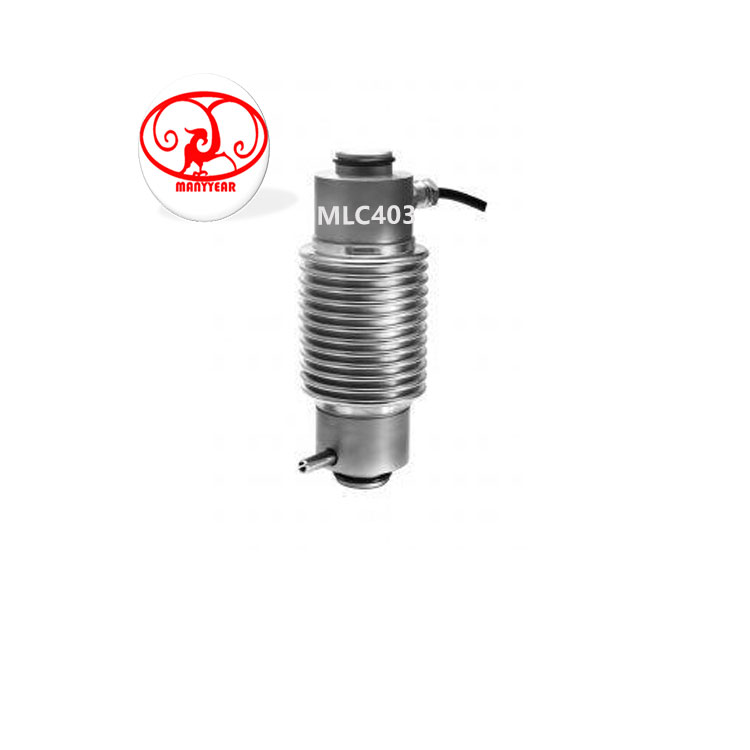

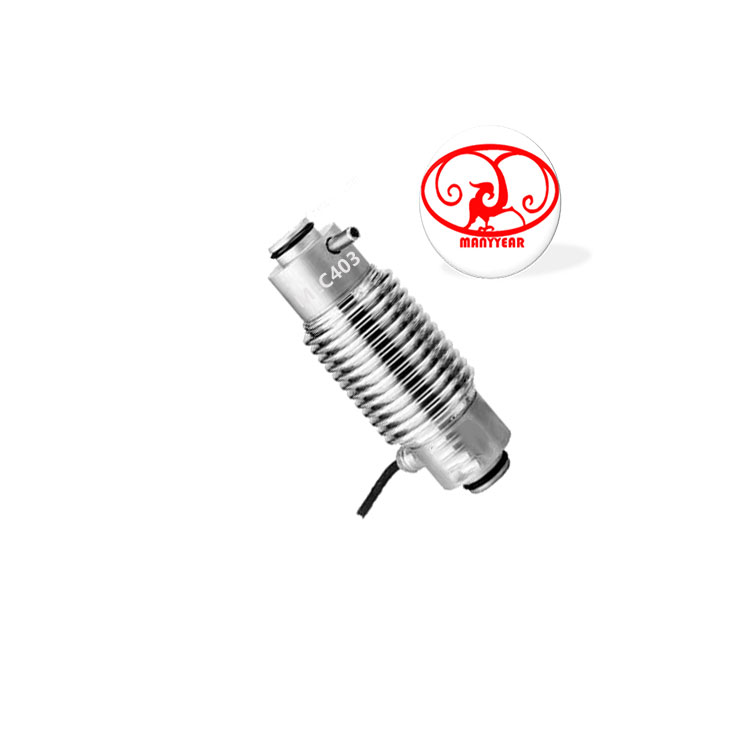

MLC403-Alloy steel column type compression load cell

Model: MLC403 Category: Compression Load Cell Load range: 25t,30t,40t, 50t, 60t, 90t Dimension: 72192mm; 85225mm Material: Alloy steel, stainless steel Application: Force test equipment, compression test equipment

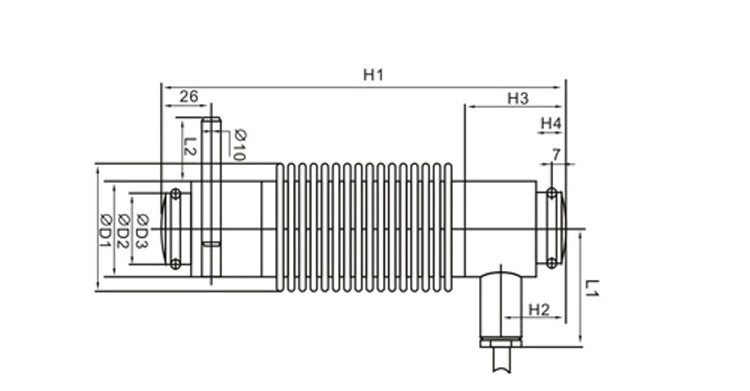

Other Dimension
Load range	L1	L2		H1	H2	H3		H4	D1	D2		D3	S MAX
25, 30t	62	33		192	34	51		15	72	50		37	10.5
40t	69	26		225	36	57		16	85	64		37	11
50, 60t	69	26		225	36	57		16	85	64		54.4	12.5
90t	69	26		225	36	57		16	85	64		54.4	9
Specification
Comprehensive error:			0.03&0.05%FS				Output resistance:				700±5Ω
Rated output:			1.5±0.002mv/v				Insulation resistance:				≥5000MΩ(100VDC)
Non-linearity:			0.03%FS				Excitation voltage:				9~12VDC
Hysteresis:			0.02%FS				Compensated temp:				-10~+40ºC
Repeatability:			0.01%FS				Use temperature:				-35~+65ºC
Creep:			0.02%FS/10Min				Temp effect on zero:				0.03%FS/10ºC
Zero balance:			±1%FS				Temp effect on span:				0.02%FS/10ºC
Input resistance:			700±10Ω				Defend grade:				IP66&IP68
