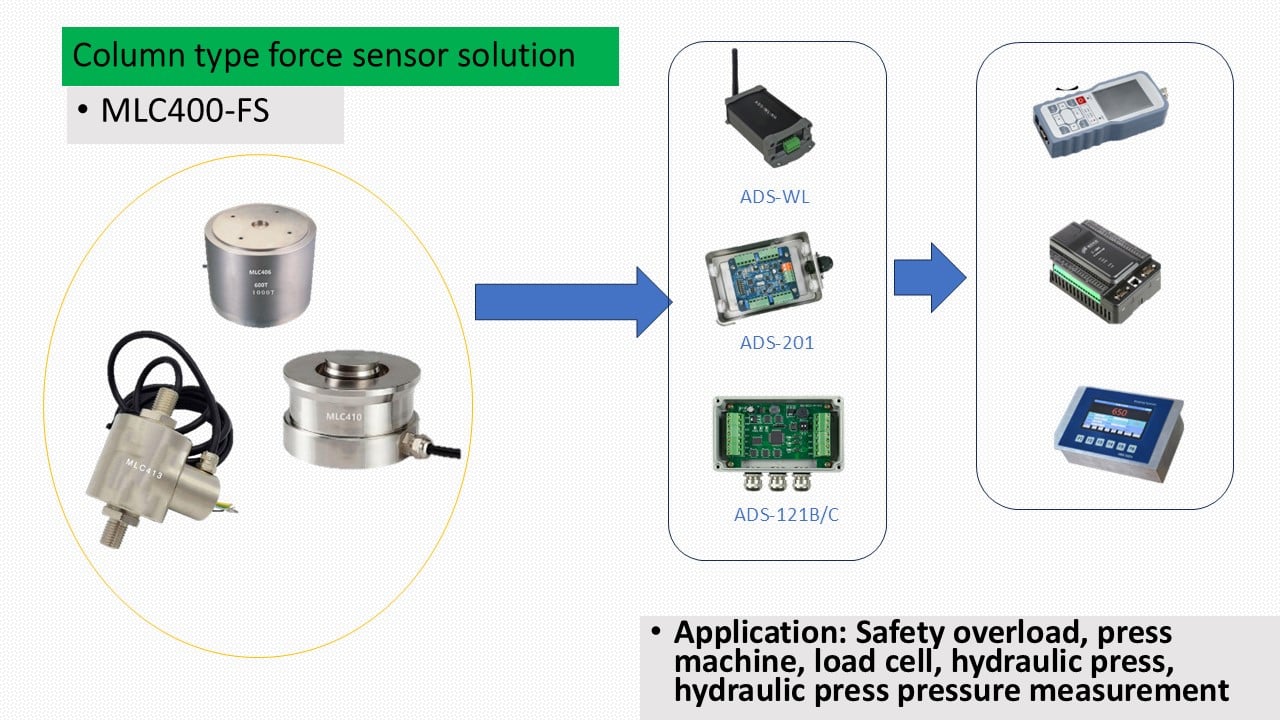

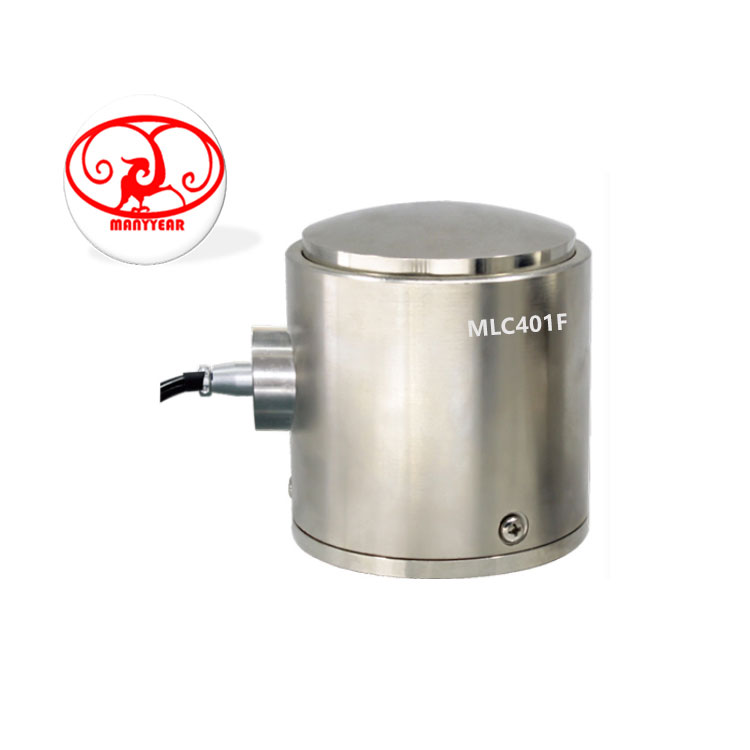

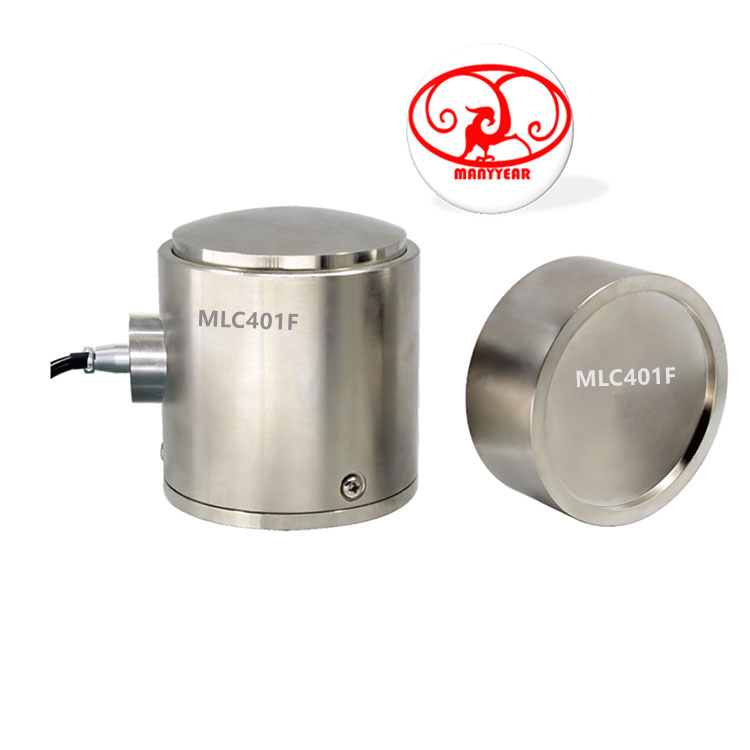

MLC401ZSF hydraulic press large range force sensor, 2t-1000t, alloy steel/stainless steel, high precision.
Model: MLC401ZSF
Category: Column load cells
Range: 2-20t, 30-50t, 60-100t, 200t, 300t, 500t, 700-1000t
Material: alloy steel, stainless steel
Application: Hydraulic press, oil press, hydraulic press, testing machine, dynamometer, large-scale weighing force sensor
| Technical specification | |||
| Comprehensive error: | 0.1 % FS | Output resistance: | 700 ±5Ω |
| Rated output: | 2.0 /3.0 ±0.002mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.3 % FS | Operating Voltage: | 9~15VDC |
| Lag: | 0.1 % FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.1 % FS | Operating temperature: | -40~+80 ℃ |
| Creep: | 0.1 % FS/10min | Effect of Temp. on zero point: | 0.03%FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.02%FS/10 ℃ |
| Input resistance: | 700 ±5Ω | Protection level: | IP68 |
