MLC401ZSE Weighbridge Column Type Load Cell 20-400T High Precision for Truck Scale
Model: MLC401ZSE
Category: Column weighing sensor
Measurement range: 20t, 25t, 30t, 40t, 50t, 60t, 70t, 100t, 150t, 200t, 300t, 400t

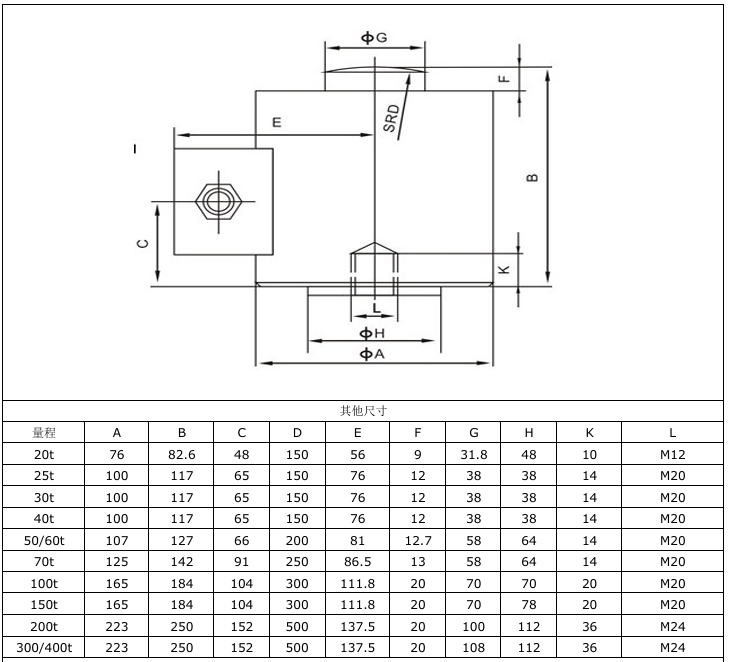

Size: 76 * 82.6mm; 125 * 142 millimeters; 223 * 250mm
Materials: alloy steel, stainless steel
Application: Automobile scale, electronic floor scale, hydraulic press, hydraulic press, dynamometer, large-scale weighing sensor
| Technical specifications | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 352±5Ω |
| Rated output: | 2±0.002 mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.02%FS | Operating Voltage: | 9~15VDC |
| Lag: | 0.02%FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.01%FS | Operating temperature: | -40~+80 ℃ |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point: | 0.03%FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.02%FS/10 ℃ |
| Input resistance: | 400±5Ω | Protection level: | IP68 |
MLC405G Truck Scale Load Cell | 5-50T High Precision Weighbridge Load Cell
Range: 5t,10t,15t,20t,25t,30t,40t,50t
Dimension: 85*178.8mmMLC405N Column Type Truck Scale Load Cell | 10-50T High Precision Weighbridge Load Cell
Range: 20t,25t,30t,40t,50t
Dimension: 85*150mmMLC405F Column Type Truck Scale Load Cell | 10-50T High Precision Weighbridge Load Cell
Range: 10t,15t,20t,25t,30t,40t,50t
Dimension: 85*150mmMLC404 -hopper scale load cell
Range: 30t,45t
Dimension: 101.6*200mm
