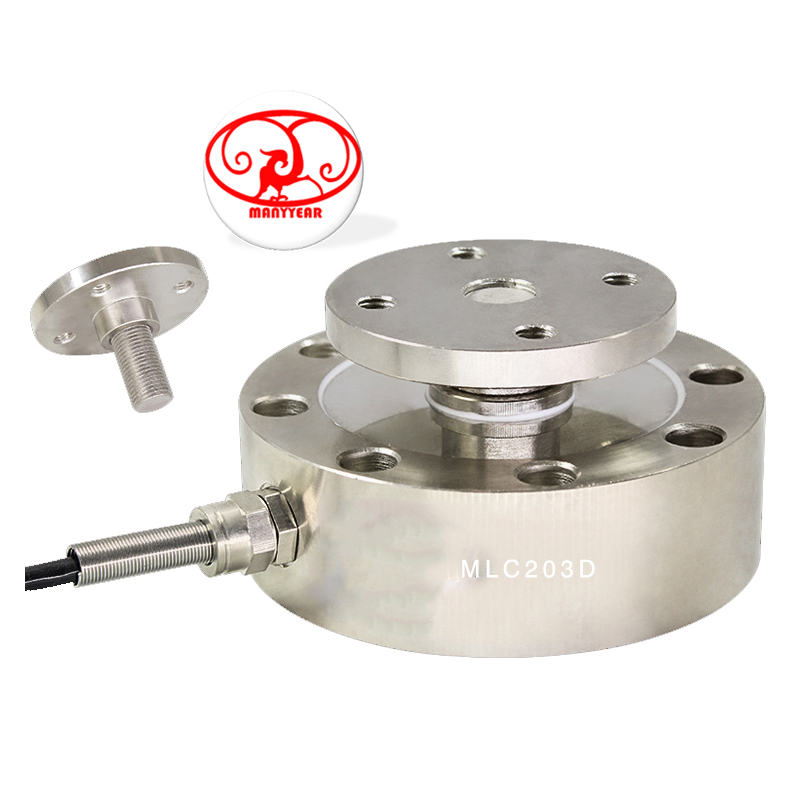

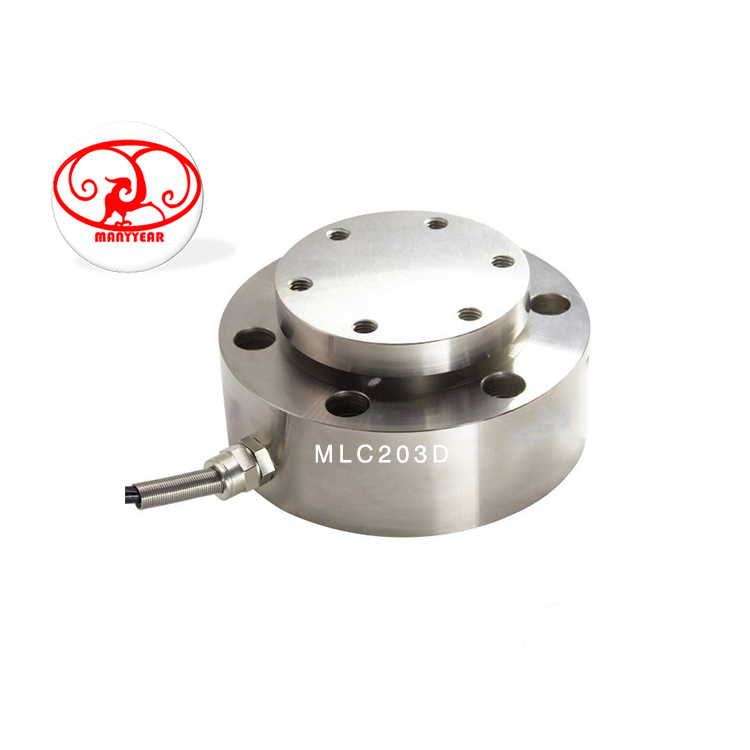

MLC203D Dynamometer Force Load Cell 500kg-50T Flange Pressure Load Cell
Model:MLC203D
Catalog: Push Button Load Cells
Rated load: 500kg, 1, 2, 10, 15, 25, 50T
Size: Ø 80*39mm, Ø 118*58mm, Ø 146*74mm
Overload: 150%/200%
Material: alloy steel, stainless steel, alloy aluminum
Applicable to: dynamometer, hydraulic press, hopper scale, packaging scale, platform scale, dynamic weighing system
| Technical specifications | |||
| Comprehensive error: | 0.05 % FS | Output resistance: | 700/1400 ±5Ω |
| Rated output: | 2.0±0.05mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.0 5 %FS | Operating Voltage: | 5 ~12VDC |
| Lag: | 0.0 5 %FS | Compensation temperature: | -10 ~+ 60 ℃ |
| Repeatability: | 0.0 5 %FS | Operating temperature: | -20~+ 80 ℃ |
| Creep: | 0.0 5 %FS/10Min | Effect of Temp. on zero point: | 0.05%FS/10 ℃ |
| Zero Balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10 ℃ |
| Input resistance: | 700/1400 ±10Ω | Protection level: | IP66 & IP68 |
