Pin-type Force Load Cell -750t, for ultra-heavy cranes—durable, accurate for overload limiters.
Model: MLC162
Category: pin Type force Load Cells
Range: 150t, 200t, 300t, 500t, 750t

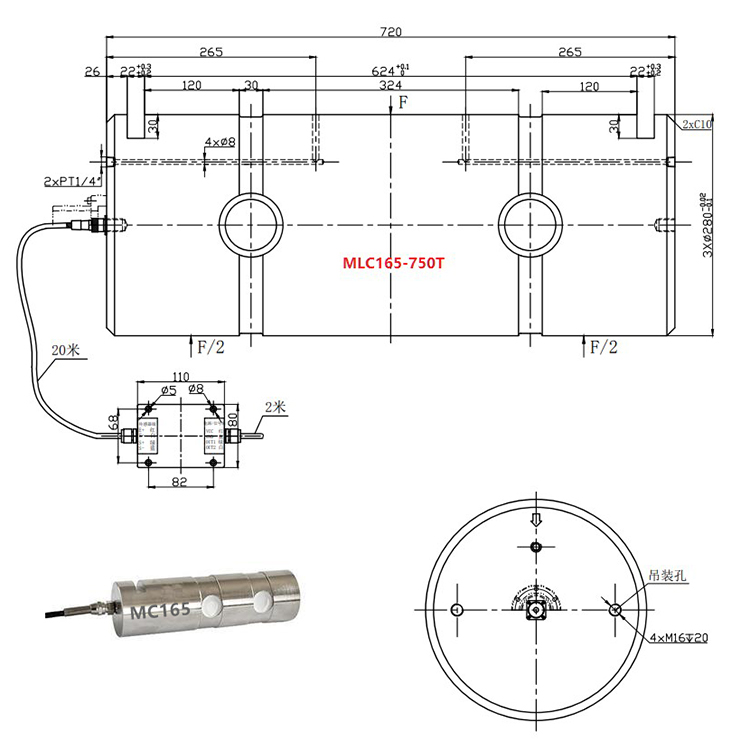

Size : Φ280*720mm
Material: Alloy steel, Stainless steel
Application: Safety overload limiter, overload testing, hook scale, crane
| Technical specifications | |||
| Comprehensive error | 0.5%FS | Output resistance | 702±5Ω |
| Rated output | 1.0±0.005mv/v | Insulation resistance | ≥5000MΩ(100VDC) |
| Nonlinear | 0.1%FS | Operating voltage | 24VDC |
| Hysteresis | 0.1%FS | Compensation temperature | -10~+40 ℃ |
| Repeatability | 0.05%FS | Operating temperature | -20~+55 ℃ |
| Creep | 0.1%FS/10MIN | Effect of Temp. on zero point: | 0.05%FS/10 ℃ |
| Zero output | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10 ℃ |
| Input resistance | 750±10Ω | Protection level | IP66 |
