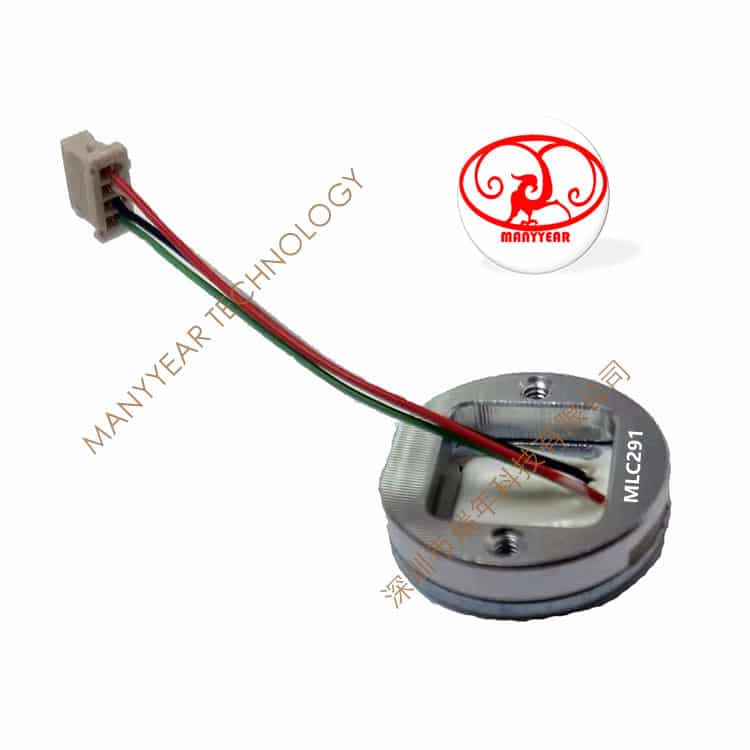

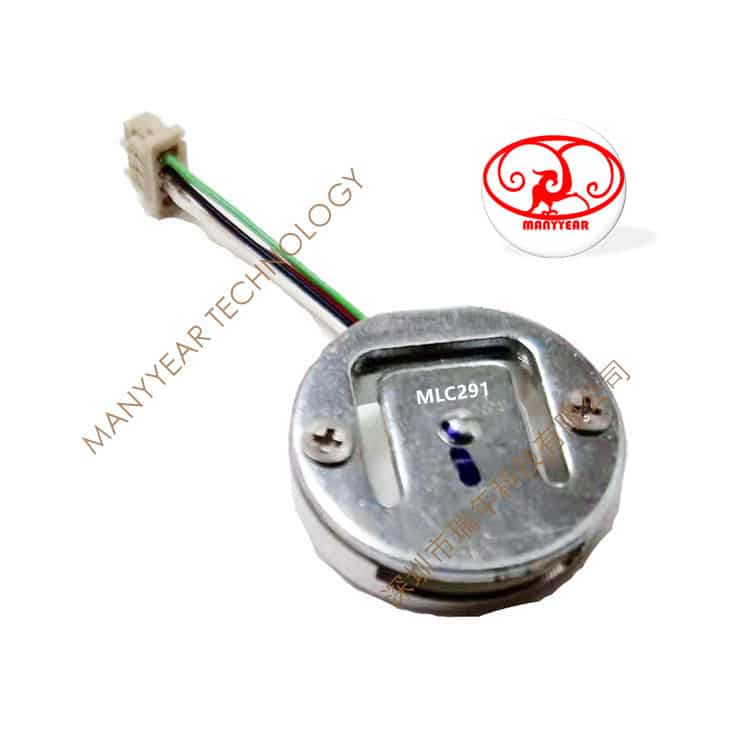

MLC291 Low-Cost Miniature Force Sensor (5-200kg) —button-type, material-matched, compact, accurate for budget-friendly measurement.
Model: MLC291
Category: Push Button Load Cell
Cruising range: 5kg, 10kg, 20kg, 50kg, 100kg, 200kg
Material: alloy aluminum(5kg-50kg), alloy steel (100kg and 200kg)
Application: force measurement, compression test
| Technical specification | |||
| Comprehensive error: | 0.2%FS | Output resistance: | 350±5Ω |
| Rated output: | 0.75/1.0±0.1mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.2%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.2%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.1%FS | Operating temperature: | -35~+65ºC |
| Creep: | 0.03%FS/10Min | Effect of Temp. on zero point: | 0.05%FS/10ºC |
| Zero Balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10ºC |
| Input resistance: | 350±5Ω | Protection level: | IP66 |
