MLC118 Vehicle-Mounted Load Cell, bridge-type for multi-scenarios (1t-20t). Alloy/stainless steel, IP66&IP68
MLC118 is a bridge-type core sensor suitable for multi-scenario heavy-load needs, covers a measuring range of 1t-20t. It is widely used in traffic weighing detection, automobile overload detection, overhead crane scales, ladle scales, elevator weight limiters and steel rope tension measurement. Made of alloy steel and stainless steel, it features high strength and corrosion resistance, with an operating temperature of -20~+55℃ and protection class IP66&IP68, easily adapting to complex industrial and traffic environments. Two sizes are available: 350*75*56mm and 410*100*56mm. With standard wiring: red (Input+), white (Output-), black (Input-), green (Output+), it is easy to install and highly adaptable. Equipped with 0.2%FS combined error, 0.03%FS repeatability accuracy, rated output of 1.2±0.005mv/v and insulation resistance ≥5000MΩ, the product delivers precise and stable measurement data, making it a high-quality and reliable choice for heavy-load weighing in multiple fields.
Model: MLC118
Category: Bridge Load Cell
Range: 1t, 2t, 3t, 4t, 5t, 10t， 20t

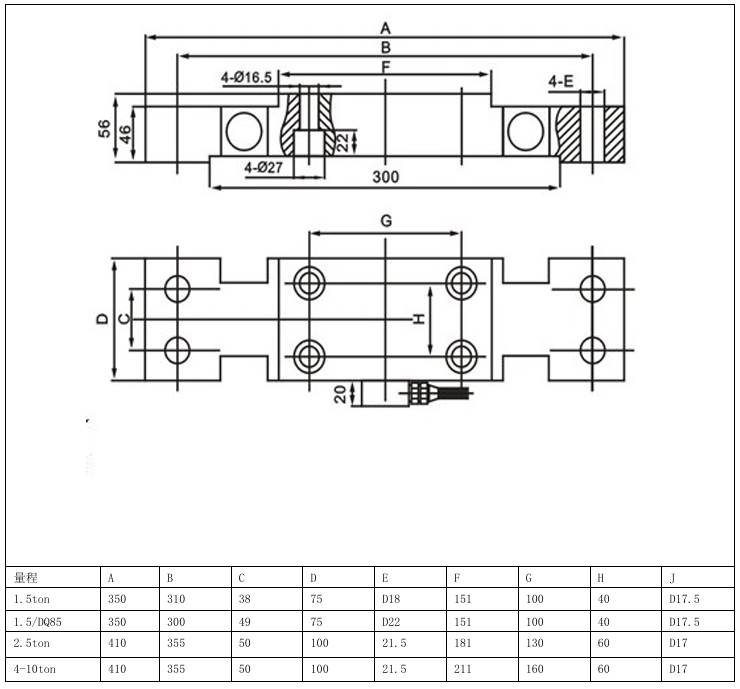

Dimension: 350*75*56/410*100*56mm
Material: alloy steel,stainless steel
Characteristic: steel embody scale load cell, high temperature weight sensor, ladle scale load cell
