MLC117 Vehicle-Mounted Load Cell, bridge-type for auto test benches (5t-20t). Alloy/stainless steel, IP65, easy installation, precise measurement.
MLC117 Vehicle-Mounted Load Cell, a bridge-type sensor developed specifically for traffic weighing scenarios, covers a measuring range of 5t-20t, suitable for automobile test benches, force testing machines, rail scales and other equipment. Made of alloy steel and stainless steel, it features durability and anti-interference ability, with an operating temperature range of -25~+55℃ and protection class IP65, easily adapting to complex traffic detection environments. Two sizes are available: 348*48*56mm and 590*59.5*55.4mm. Equipped with standard wiring: red (Input+), white (Output-), black (Input-), green (Output+), it is easy to install and highly adaptable. With 0.2%FS combined error, 0.05%FS repeatability accuracy, rated output of 2.5±0.003mv/v, and insulation resistance ≥5000MΩ, the sensor delivers precise and stable weighing data. Whether for accurate measurement of automobile test benches or efficient operation of traffic weighing detection, it provides reliable support, making it an excellent choice in the vehicle-mounted and traffic weighing fields.
vehicle scale load cell, automobile examination load cell, force load cell
- Model: MLC117
Category: Bridge Load Cell
Range: 5t, 10t, 20t

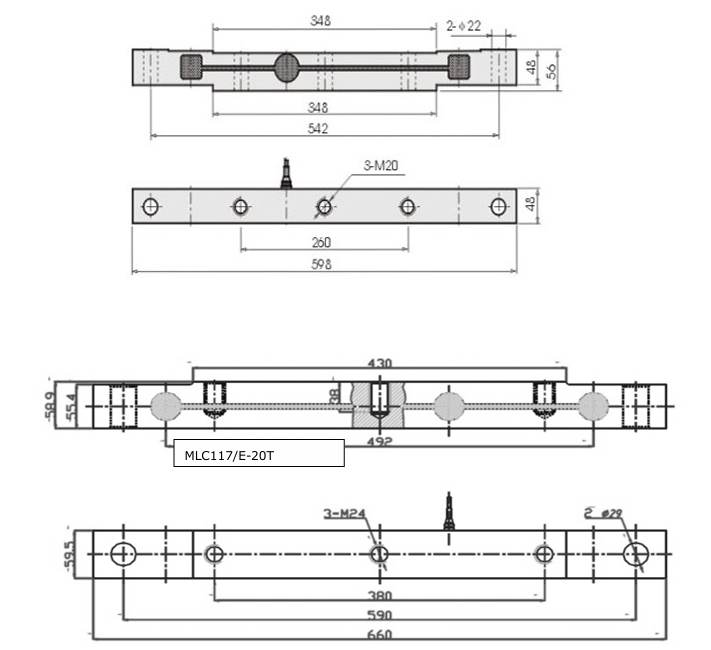

Dimension: 348*48*56mm/590*59.5*55.4mm
Material: alloy steel,stainless steel
Characteristic: vehicle scale load cell, automobile examination load cell, force load cell
