MLC405CTD truck scale electronic weighbridge column load cell 50t
Range: 10t,15t,20t,25t,30t,40t,50t
Dimension: 76*150mm
Material: Alloy Steel, Stainless Steel
Dimension: 76*150mm
Material: Alloy Steel, Stainless Steel

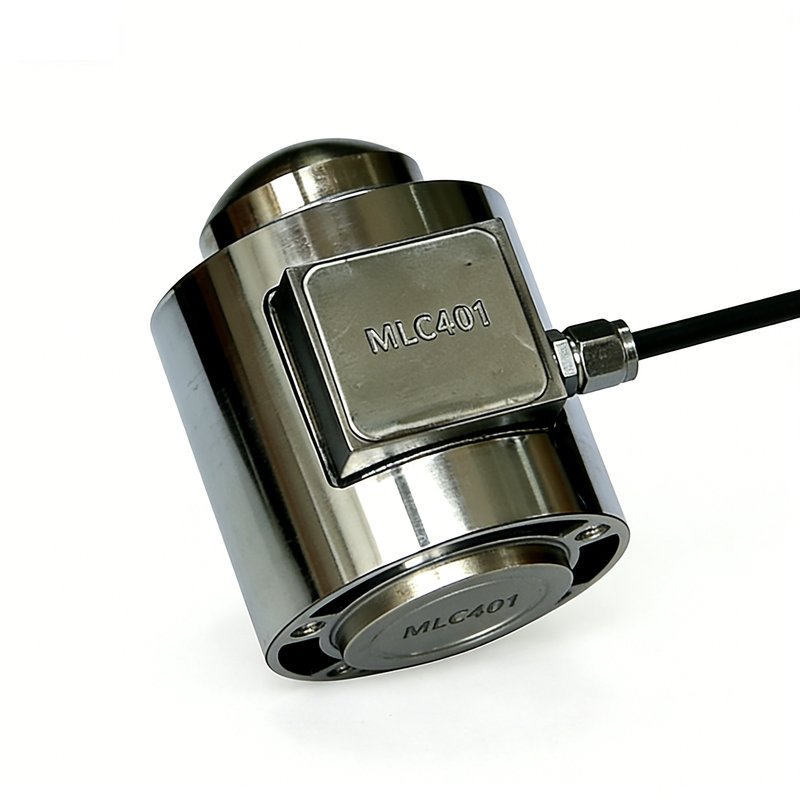

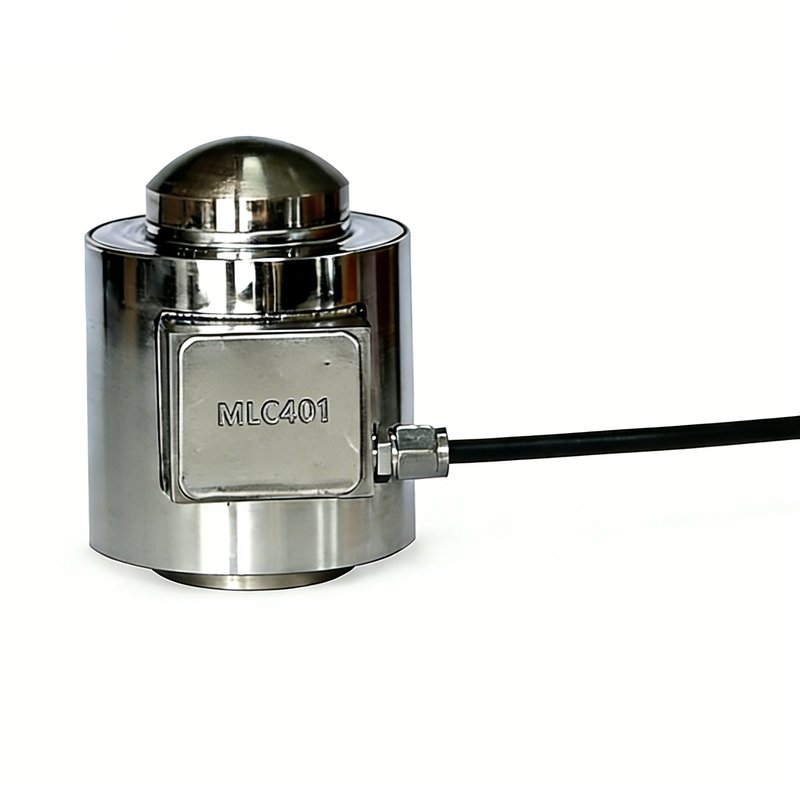

MLC401 Column Type Load Cell
Product Introduction
Model: MLC401
Category: Column Type Load Cell
Range: 10, 25, 40, 60,100ton
Accuracy: 0.02%FS
Operating Temperature: -40~+80ºC

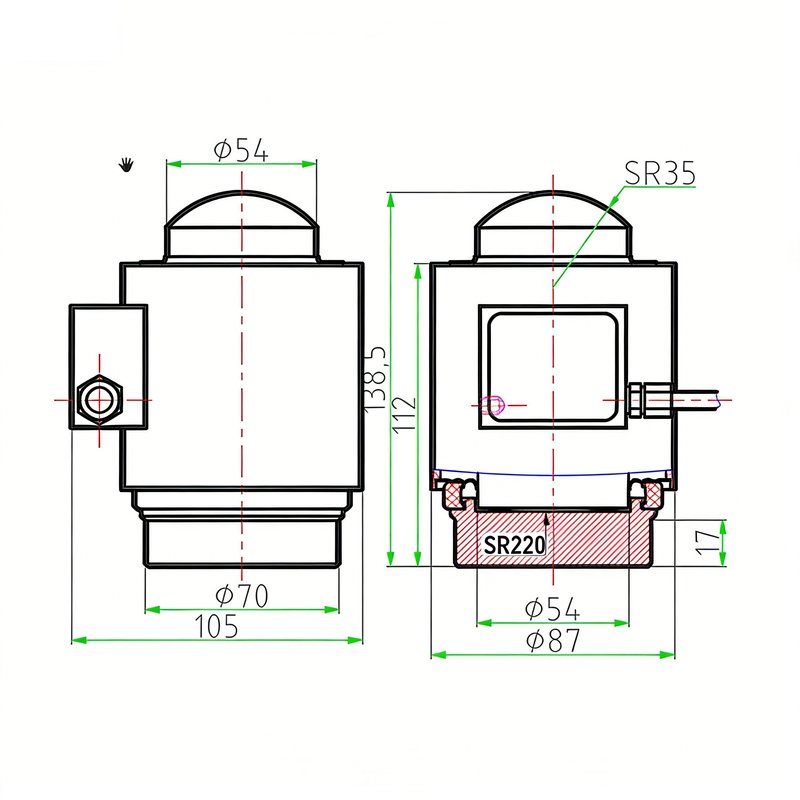

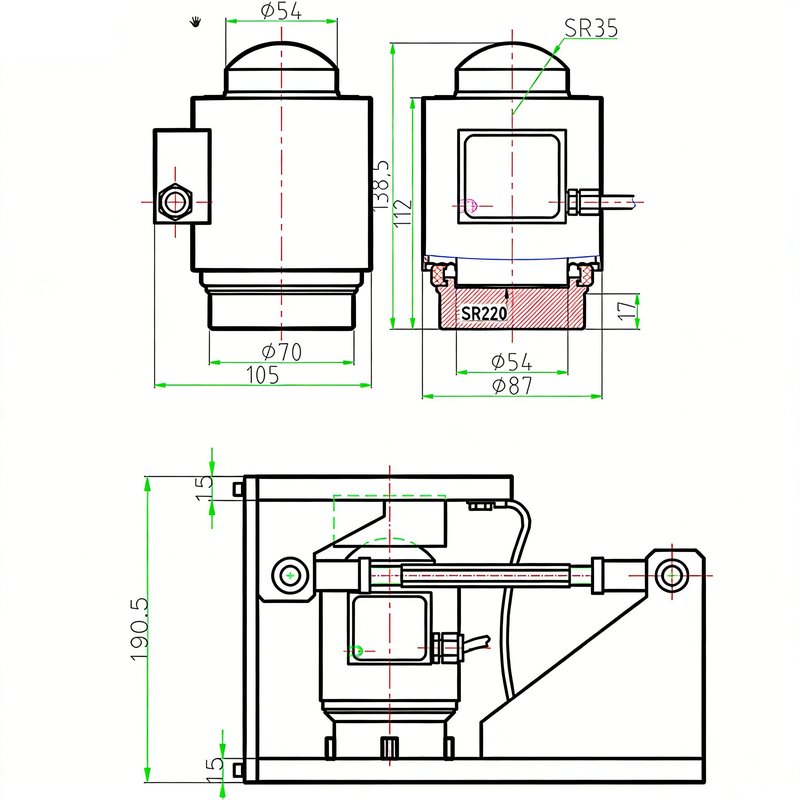

Dimension: Ø73*82.5mm, Ø105*127mm, Ø152.4*184.2mm
Safe Overload: 150%; : 200%
Material: Alloy Steel, Stainless Steel
Application: Truck Scale Load Cell
Category: Column Type Load Cell
Range: 10, 25, 40, 60,100ton
Accuracy: 0.02%FS
Operating Temperature: -40~+80ºC
Dimension: Ø73*82.5mm, Ø105*127mm, Ø152.4*184.2mm
Safe Overload: 150%; : 200%
Material: Alloy Steel, Stainless Steel
Application: Truck Scale Load Cell
Download related documents
Technical Specifications
MLC401 Column Type Load Cell by ManYear Technology is a high-quality Column Type Load Cell. Range 10, 25, 40, 60,100ton, accuracy 0.02%FS, operating temperature -40~+80ºC. Dimension Ø73*82.5mm, Ø105*127mm, Ø152.4*184.2mm. Material: Alloy Steel, Stainless Steel. Applications: Truck Scale Load Cell. Keywords: Column Type Load Cell, Electronic Floor Scale Load Cell. ManYear MLC401 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Column Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
