MLC204E11 Button Type Force Sensor
Range: 200kg
Dimension: φ11*8mm
Material: Stainless Steel, Aluminum Alloy
Dimension: φ11*8mm
Material: Stainless Steel, Aluminum Alloy

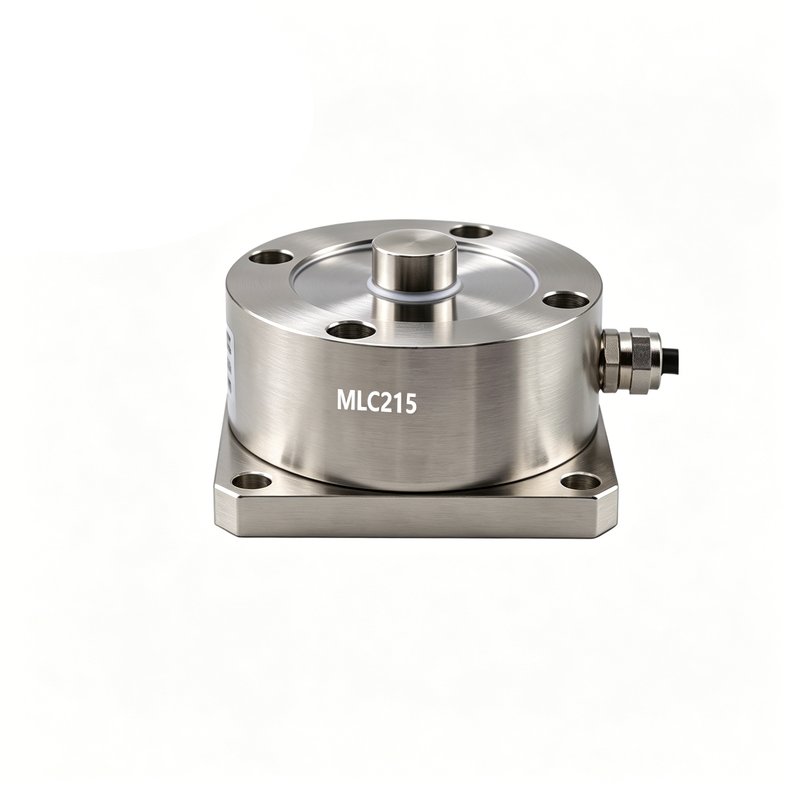

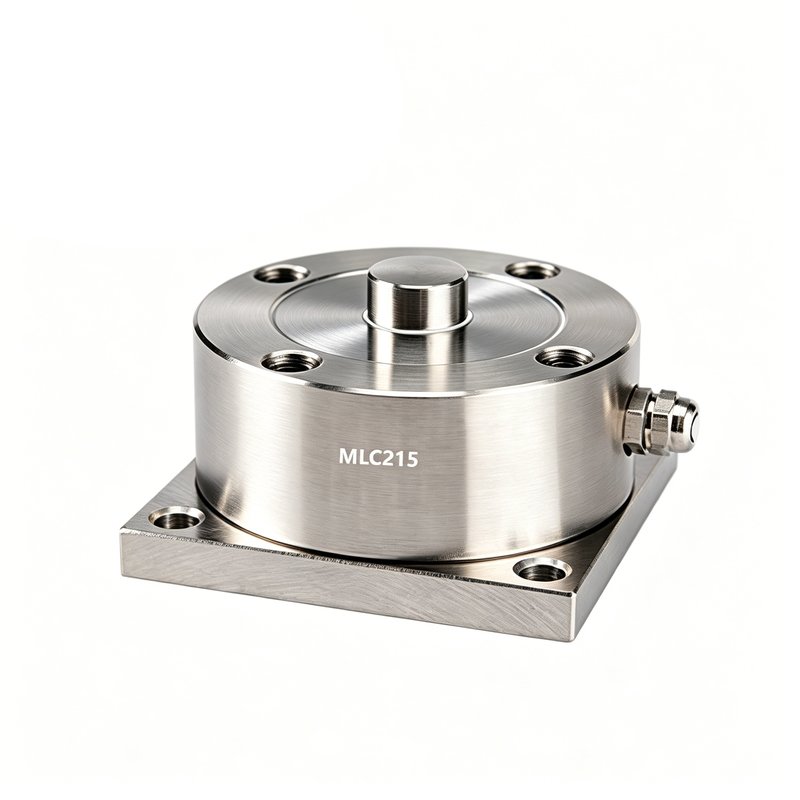

MLC215A Button Force Sensor
Product Introduction
Model: MLC215A
Range: 1t,2t,3t,5t,7.5t
Accuracy: ±0.05%FS
Operating Temperature: -30~+55ºC
Dimension: 100*54mm
Material: Alloy Steel, Stainless Steel
Application: Packaging Scale Load Cell, Batching Scale Load Cell, Silo Scale Load Cell, Platform Scale Load Cell
Range: 1t,2t,3t,5t,7.5t
Accuracy: ±0.05%FS
Operating Temperature: -30~+55ºC
Dimension: 100*54mm
Material: Alloy Steel, Stainless Steel
Application: Packaging Scale Load Cell, Batching Scale Load Cell, Silo Scale Load Cell, Platform Scale Load Cell
Download related documents
Contact immediately
Technical Specifications
MLC215A Button Force Sensor by ManYear Technology is a high-quality Sensor. Range 1t,2t,3t,5t,7.5t, accuracy ±0.05%FS, operating temperature -30~+55ºC. Dimension 100*54mm. Material: Alloy Steel, Stainless Steel. Applications: Packaging Scale Load Cell, Batching Scale Load Cell, Silo Scale Load Cell, Platform Scale Load Cell. Keywords: Packaging Scale Load Cell. ManYear MLC215A delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Button Force Sensor measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
