MLC314 Plate ring load cell, 1-100Ton, alloy steel/stainless steel, for crane scales and tensile machines, high stability and heavy-duty performance.
Model: MLC314
Category: Plate ring load cell
Range : 1,3,5,10,15,20,30,50,100 ton

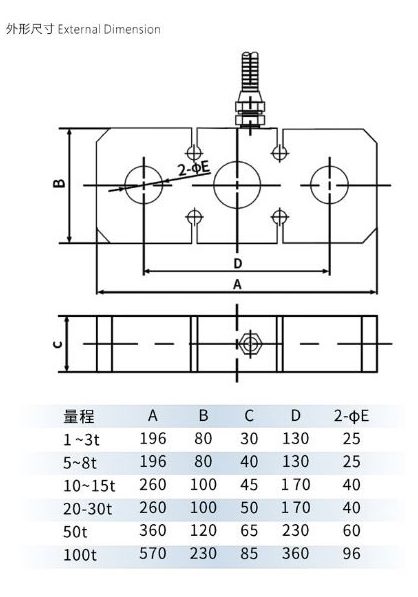

Size: 255*130*30mm;295*130*40mm
Material: Alloy steel, Stainless steel
Application: hook scale, tensile machine
| Technical specifications | |||
| Comprehensive error: | 0.3 % FS | Output resistance: | 352±3Ω |
| Rated output: | 2±0.0 5 mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.3 % FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.3 % FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.1 % FS | Operating temperature: | -20~+65ºC |
| Creep: | 0.1 % FS/10MIN | Effect of Temp. on zero point: | 0.0 5 %FS/10°C |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.0 5 %FS/10°C |
| Input resistance: | 3 5 0±3Ω | Protection level: | IP68 |
