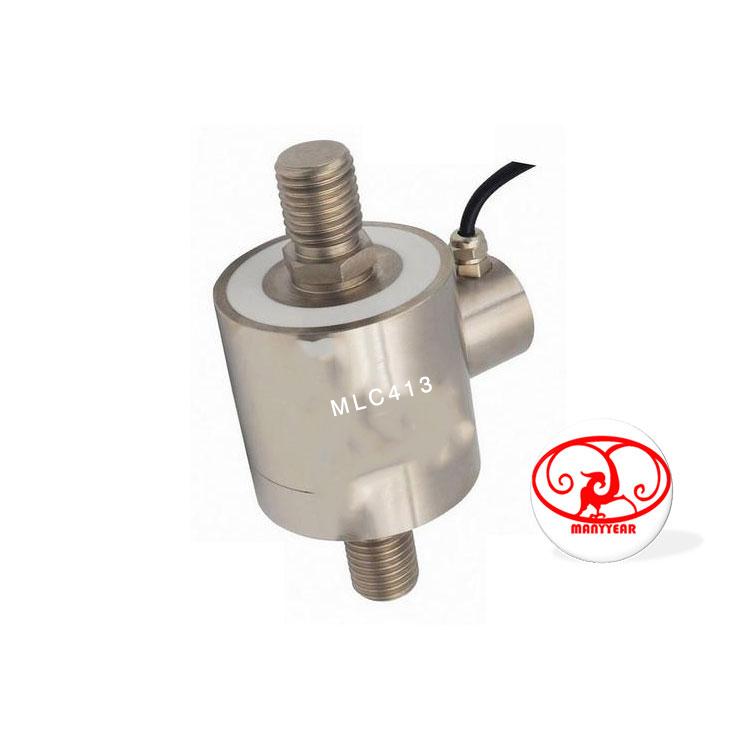

MLC413 compression & tension force sensor, 10, 20, 30 , 50, 100, 150, 200t. alloy steel/stainless steel, 4 sizes, for dynamometer.
Model:MLC 413
Category: Column Load Cell
Cruising range: 10, 20, 30 , 50, 100, 150, 200t
Size: Ø 86*214 mm , Ø 106*276 mm, Ø 142*380 mm, Ø 175*500 mm
Material: alloy steel, stainless steel
Application: Hydraulic press, dynamometer, testing machine
Features: Screw installation , large range
| Technical specifications | |||
| Comprehensive error: | 0.3 %FS | Output resistance: | 352 ± 3 Ω |
| Rated output: | 1.0,1.6mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.1 % FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.2 % FS | Compensation temperature: | -10 ~+ 70 ℃ |
| Repeatability: | 0.1 % FS | Operating temperature: | -20 ~+ 75 ℃ |
| Creep: | 0.2 % FS/10MIN | Effect of Temp. on zero point: | 0.05 % FS/10 ℃ |
| Zero Balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05 % FS/10 ℃ |
| Input resistance: | 380 ± 5 Ω | Protection level: | IP67 & IP68 |
