MLC310 micro tension sensor, S-type compact design, 50g-200kg, multi-material, for textile, winding, robot arm and micro-force measurement.
Model: MLC310
Category: S type load cell
Range: 50g,100g 250g,500g,1kg, 5kg,10kg,15,20,50,100,200kg

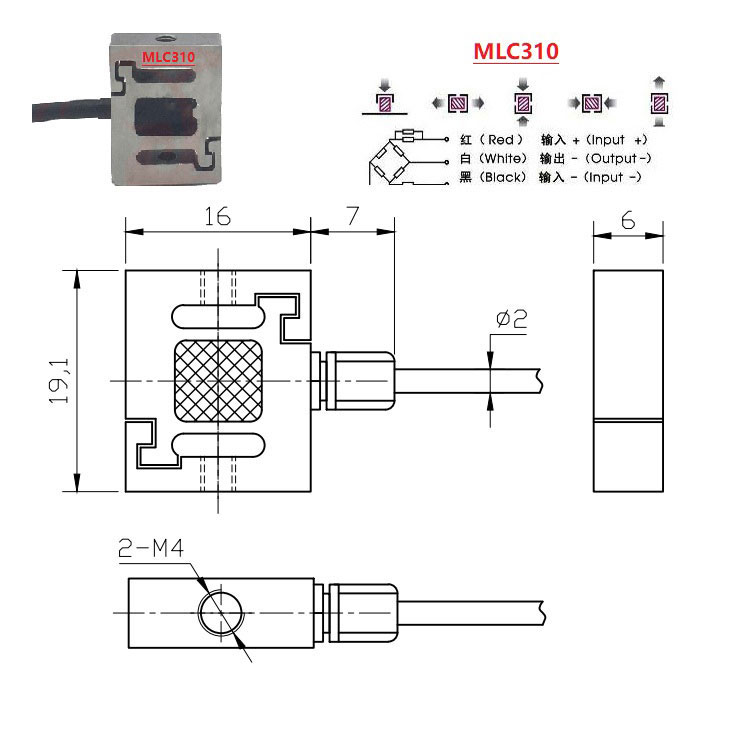

Product size: 19.1*16*5; 19.1*16*6;40*26*14mm
Material: stainless steel, alloy steel, aluminium alloy
Application: textile tension measurement, winding tension measurement, machine arm stress measurement, portable scale, micro force measure
| Technical Specification | |||
| Comprehensive error: | 0.1%FS | Output resistance: | 350±5Ω |
| Rated output: | 0.4,0.5,0.8,1.2,1.5,2.0±0.15mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.1%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.1%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+65ºC |
| Creep: | 0.03%FS/10min | Effect of Temp. on zero point: | 0.03%FS/10ºC |
| Zero balance: | ±0.1mV/V | Effect of Temp. on sensitivity: | 0.02%FS/10ºC |
| Input resistance: | 350±5Ω | Protection level: | IP66 |
