MEP500A4/6 batching scale weighing controller

digital weight transmitter, weight indicator, weight controller, batching scale weighing controller

Model: MEP500A4
Category: weight controller
Work voltage: 95-240vac/24vdc
Digital indicate: LED
analog output: 0-10vdc, 4-20mA
digital output: rs232/485
apply: digital weight transmitter, weight indicator, weight controller, batching scale weighing controller

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product Introduction Technical Documents

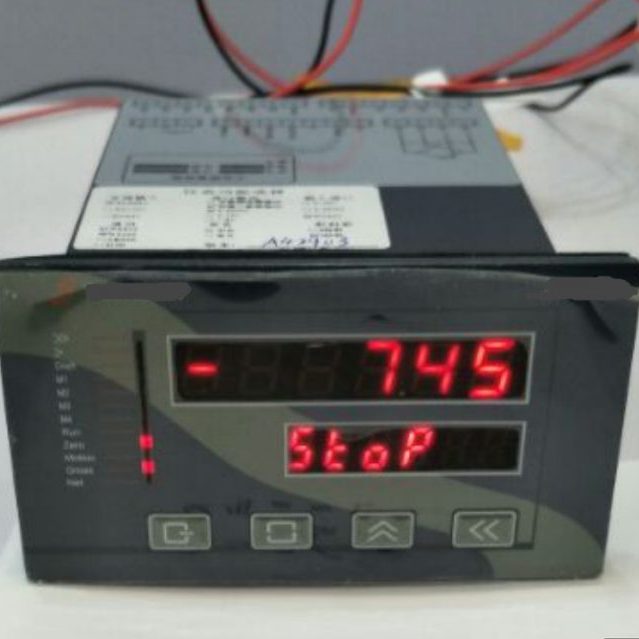

Product Picture Reference

MEP500A4/6 batching scale weighing controller

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MEP500A4,A6-Batching scale weighing controller, weight transmitter

* Pocket-size case, compact panel, two rows of LED display, four keys, easy to use and learn.

* Can control 6 different material proportioning.

* Can inch material during feeding.

* Power-off protection, it can continue to batch after restart the instrument.

* May set batch number. it can automatically stop when finishing the set batch number.

* Various communication interfaces and protocols.

* Internal integrated switch power can work normally when voltage fluctuation is below 40%.

Basic parameters
Display window	six 12.7mm and six 7.62mm LEDs display
Scale interval	1、2、5、10、20、50
Maximum display	59999
Decimal place	0、0.0、0.00、0.000、0.0000
Unit of weight	g, kg, t (gram, kilogram and ton)
Overall dimensions	110（W）x 150（D）x 62（H）mm
Product weight	About 0.6 kg
Performance index
Static accuracy class	Up to the requirement of three-level weighing instrument
Maximum signal input range	0.1mV ~ 20 mV
Maximum sensitivity	2.5μV/d
Input impedance at sensor interface	≥20MΩ
Non-linear error	≤0.002%FS
A/D conversion speed	50 SPS (Samples Per Second)
Working parameters
Type of load cell	resistor strain type weighing sensor
Excitation voltage of load cell	DC 8V,100mA,up to 4 350Ω analog load cells.
On-off output (contact) capacity	DC 24V / 0.1A
On-off input	DC24V/4--6mA
Working condition
Power supply range	AC 220V （AC175-265V），50Hz/60Hz
Power Consumption	≤10W
Operating temperature	-10°C~40°C
Humidity range	≤90% relative humidity (non-condensing)

Product Dimension
